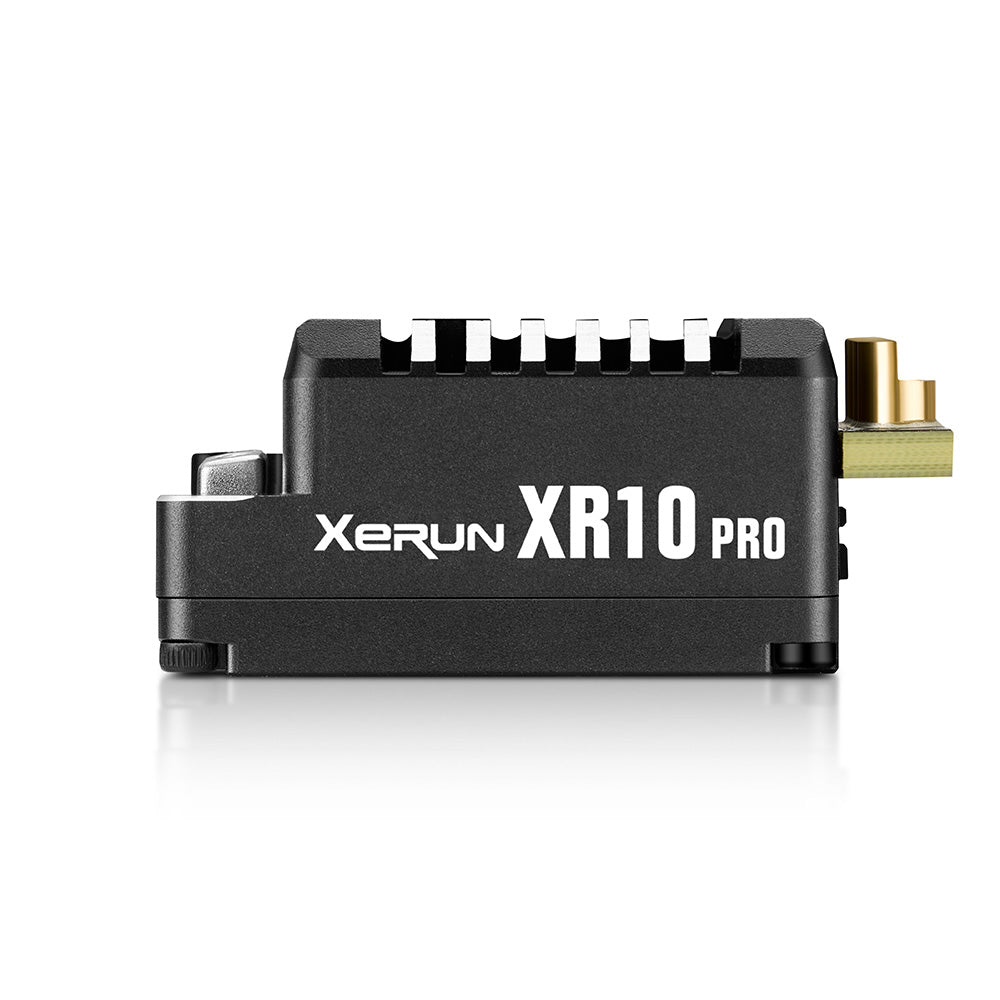

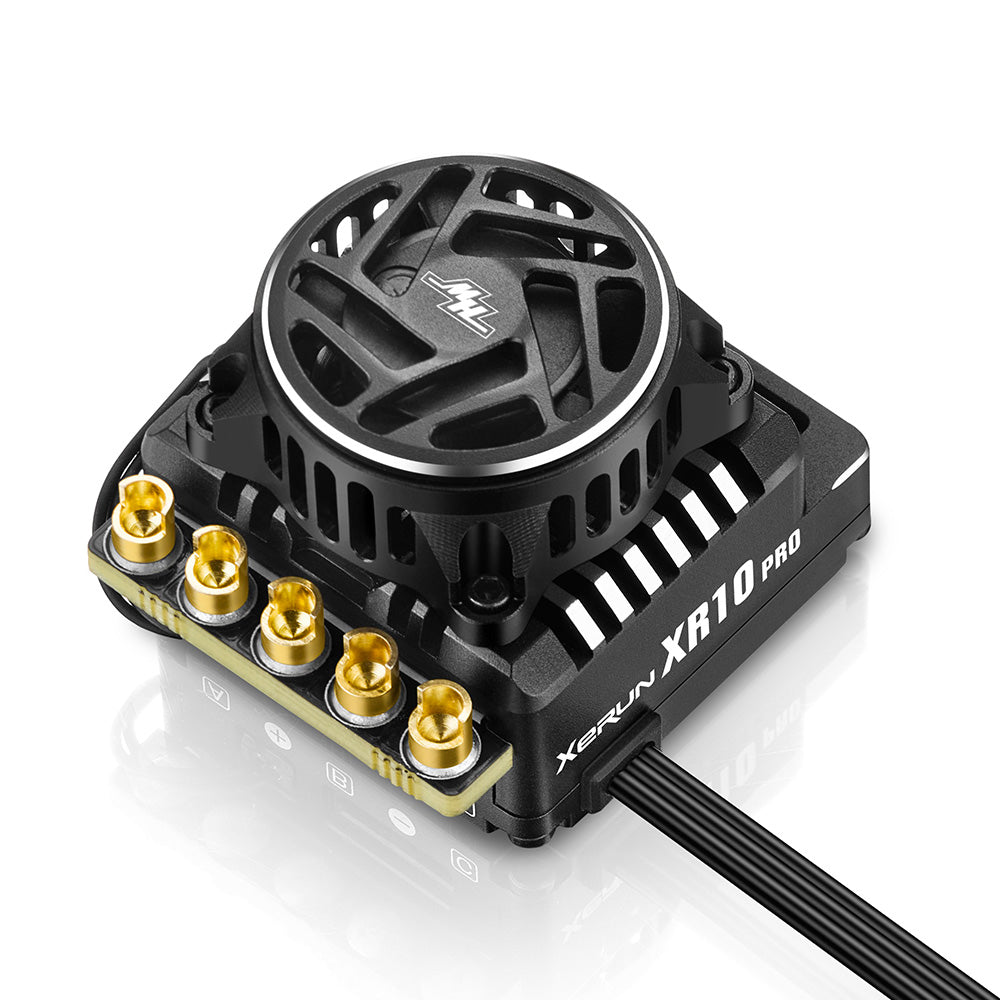

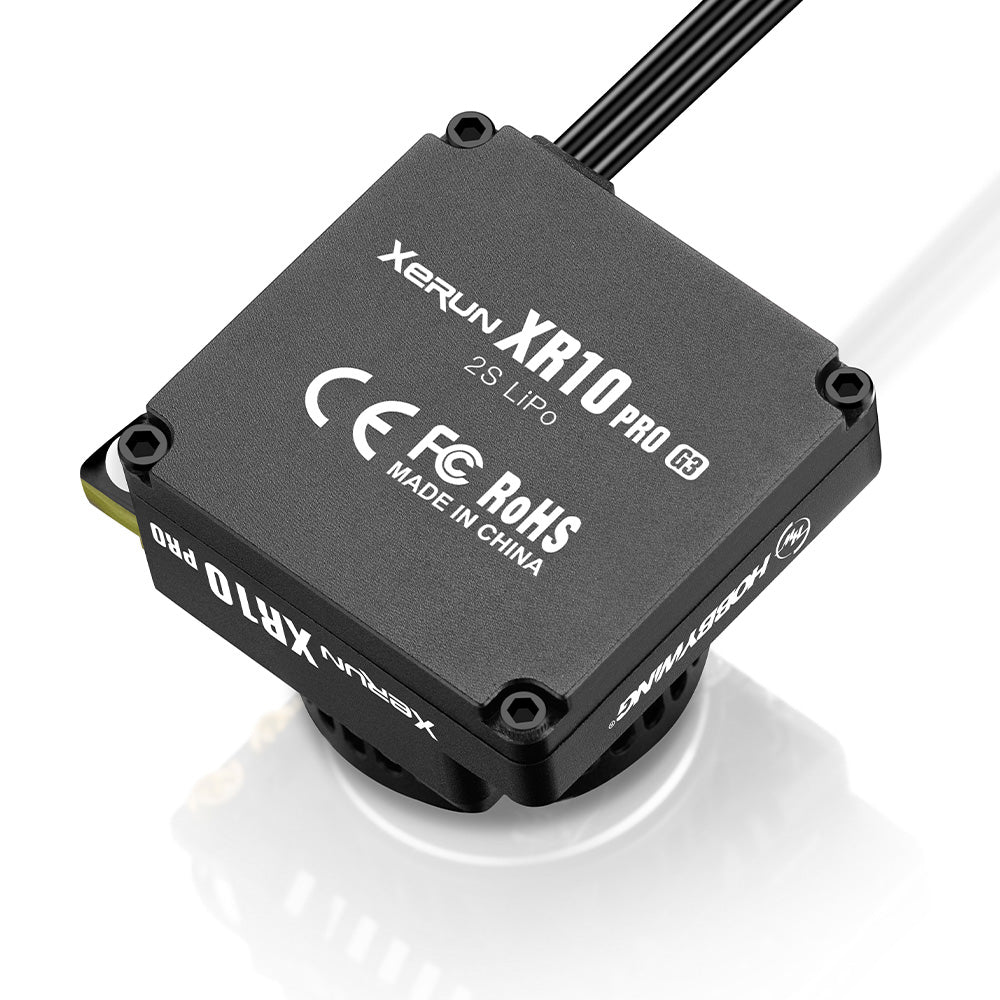

XR10 PRO G3 ESC - Modified Racing

Unleash Championship Performance with the XR10 PRO G3 ESC!

Learn more about XR10 PRO G3 System >

What's in the box:

• (1) HOBBYWING ESC

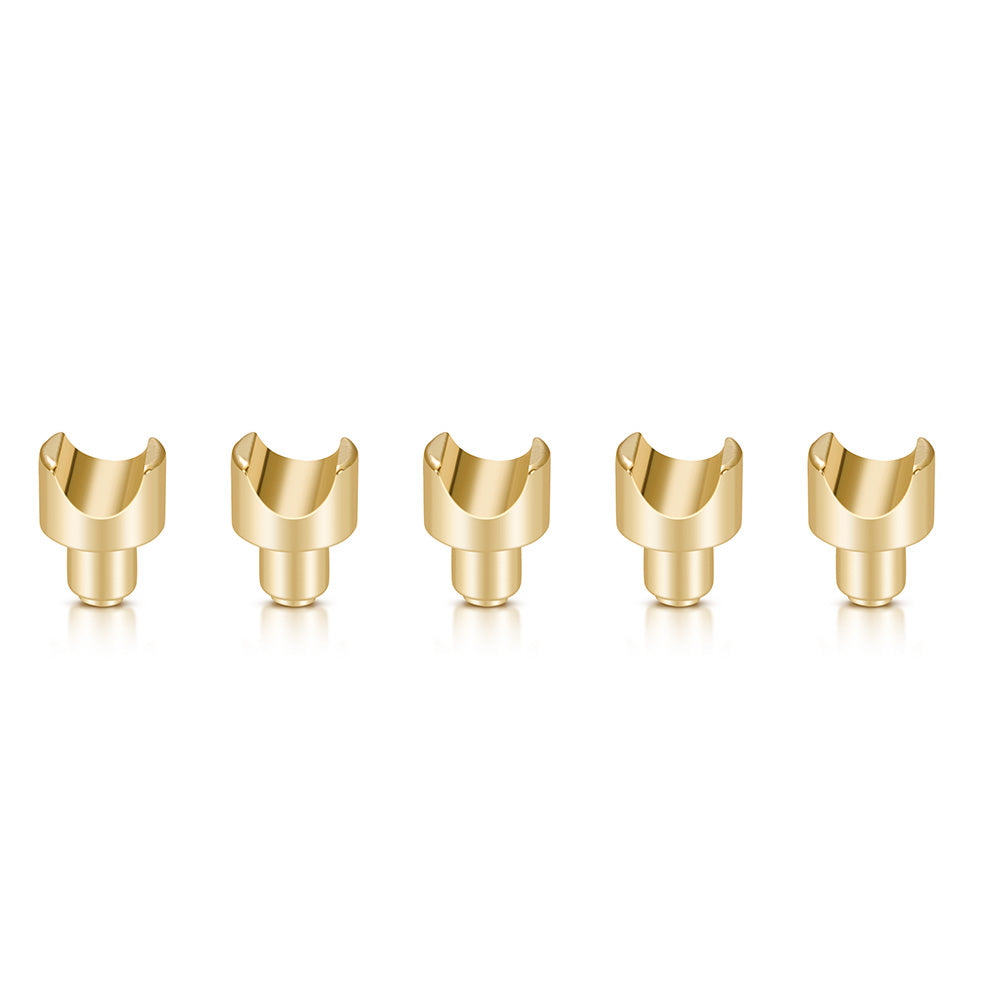

• (1) set - U-Type connectors
• Factory Decals and Accessories


• Overview
• Spec
• Download

• • HOBBYWING XR10 PRO G3 ESC is specifically engineered and designed for 1/10th Modified class racing, offering optimized performance and precision control tailored to meet the demands of competitive racing. With advanced features and customizable settings, it ensures exceptional power delivery and responsiveness, giving racers a distinct edge on the track.
  • The XR10 PRO G3 ESC is equipped with Hobbywing’s patented technology, Reverse Polarity Protection (RPP). In the event of mistakenly connecting the power wire backward, while conventional external capacitor packs may be damaged, the revised connection will not harm the ESC.
  • Three selectable profiles are available for all 1/10th RC car racing. To accommodate various racing conditions, the firmware includes three easy-to-select preset modes. Users can customize and rename these modes to suit their control preferences, track conditions, etc. For example, ‘1/10 On-Road’ can be renamed to ‘ROAR2025_MOD_4.5’ to indicate a race using a 4.5T motor at the 2025 ROAR event. These profiles can be saved for future reference.

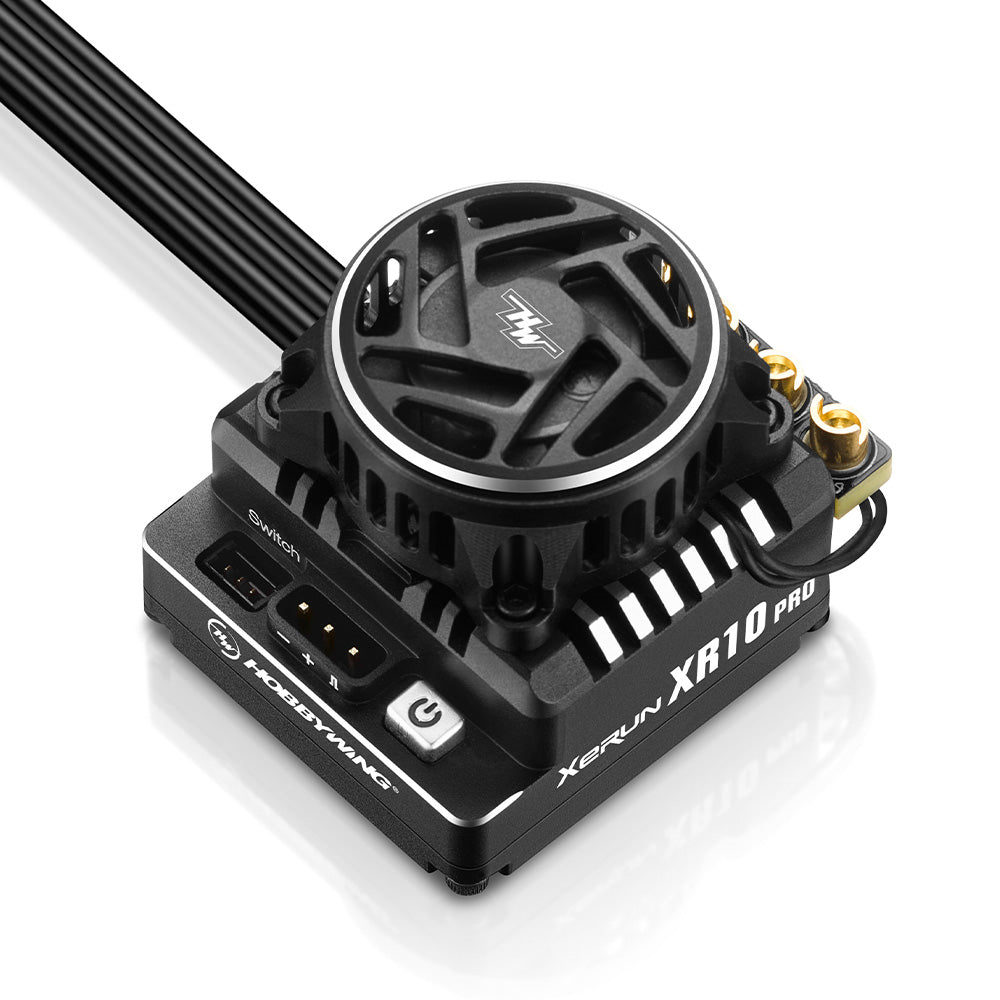

  • An internal electronic key switch ensures long service life and high reliability, while the external switch port allows for the connection of an external switch (not included, sold separately), offering flexibility for various installations.

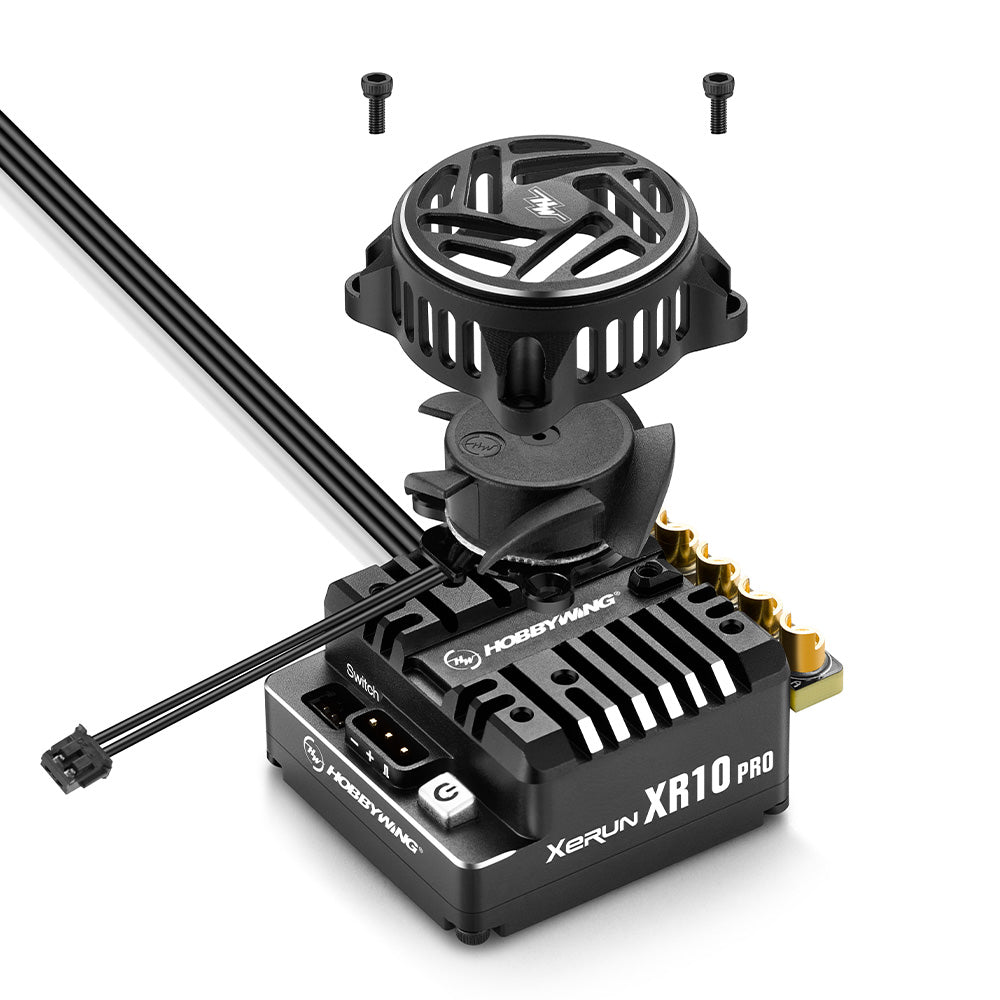

  • The separate programming port can power an external fan or connect to an LCD Program Box Pro or OTA Programmer for the ESC.
  • Variable frequency regulation of PWM and brake frequencies allows users to precisely control the driving and braking forces of the motors.
  • The softening function, Patent developed by HOBBYWING, enhances power delivery tuning and improves driving efficiency.
  • Disc Brake mode, an innovative feature by HOBBYWING, provides smoother and stronger braking performance..
  • Multiple protections include Patented RPP (Reverse-Polarity-Protection), LVC (low-voltage cutoff protection), ESC and motor thermal protection, and fail-safe (throttle signal loss protection).
  • The ESC features a built-in data recording module, eliminating the need to constantly connect to the OTA Bluetooth module. After use, connecting to the OTA Bluetooth module allows users to view various performance data.

• Model	XR10 PRO G3 ESC
  p/n	30112619
  Cont./Peak Current	160A/1200A
  Motor Type	Sensored / Sensorless Brushless Motors
  Applications	Touring Car:≥4.5T, Buggy:≥5.5T, 3650(540)size 2-pole motor
  LiPo Cells	2S LiPo
  BEC Output	5-7.4V Adjustable, Cont. current of 5A(Switch-mode)
  Cooling Fan	Powered by the stable BEC voltage
  Wire gauge	13AWG - Ultra flex silicone wires
  Size	35.0x33.6x30.3mm (w/Fan&Fan Shroud)
  Weight	93g (w/wires)
  Programming Port	Independent programming interface
  Reverse Polarity Protection	Yes
  Recommended Motor	HOBBYWING V10 brushless Motors (3.5T-10.5T)

• • User's manual-XERUN XR10 PRO G3/G3X ESC.pdf >
  • Brochure: XR10 PRO G3/G3X product brochure.pdf >

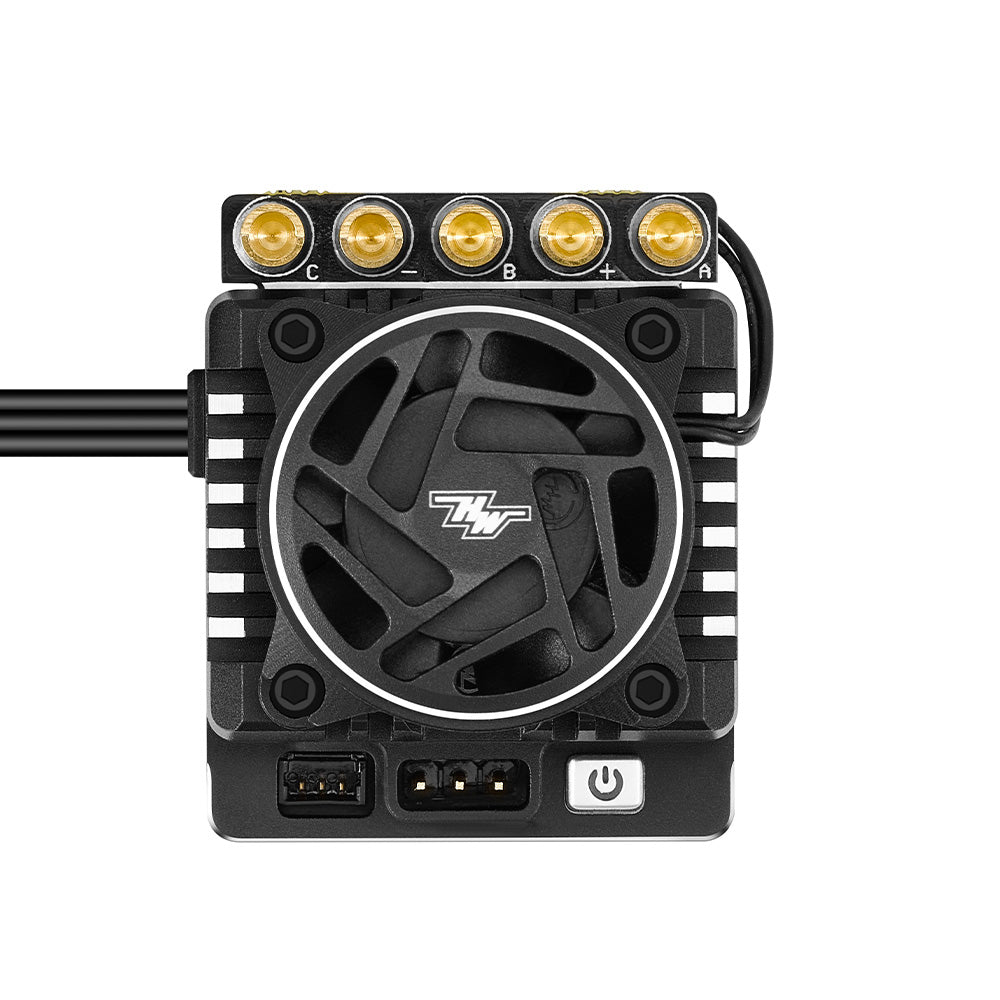

  Motor Connection: For sensored motor connections, ensure that terminal A from the ESC connects to terminal A on the motor, terminal B to terminal B, and terminal C to terminal C. The sensor wire should also be properly connected. Any variation in the motor to ESC connections may result in damage.

  •  If the motor direction is reversed, adjust the parameter item ‘Motor Rotation’ to achieve the correct setting.
  •  If it is necessary to connect terminal A of the ESC to terminal C of the motor due to layout wiring, ensure that the parameter item ‘Phase-AC Swap’ is set to ‘Enabled’.


  Receiver Connection: The throttle control cable on the ESC must be connected to the throttle (TH) channel on the receiver. This cable provides an output voltage of 5-7.4V to the receiver and steering servo; do not connect a separate battery to the receiver, as this may damage the ESC. If additional power is needed, disconnect the red wire on the throttle plug from the ESC.

  Battery Connection: Proper polarity is essential. Please ensure that positive (+) connects to positive (+) and negative (-) connects to negative (-) when plugging in the battery! The XR10 PRO G3 ESC is equipped with Hobbywing’s patented technology, Reverse Polarity Protection (RPP). In the event of mistakenly connecting the power wire backward, while conventional external capacitor packs may be damaged, the revised connection will not harm the ESC.
