HOBBYWING

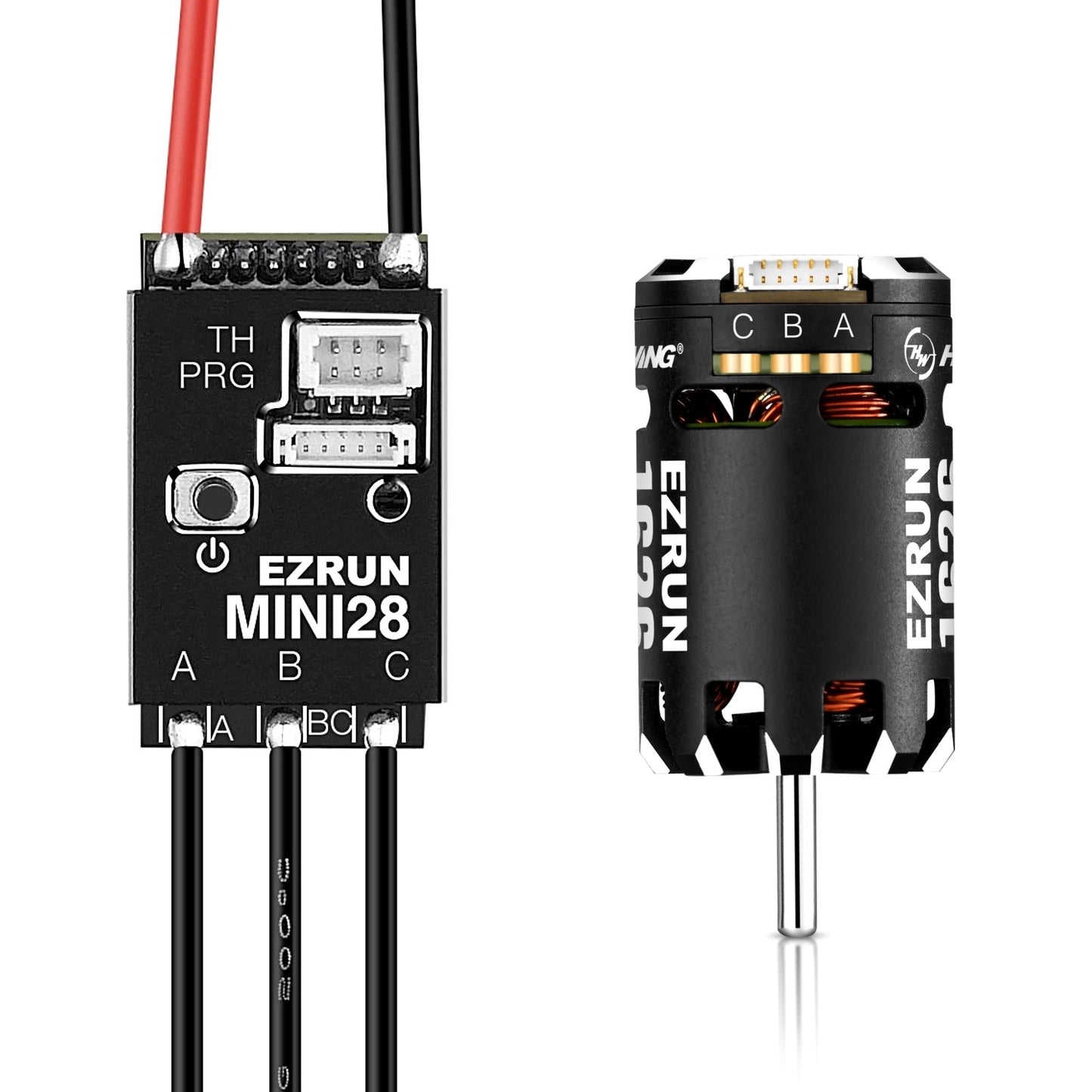

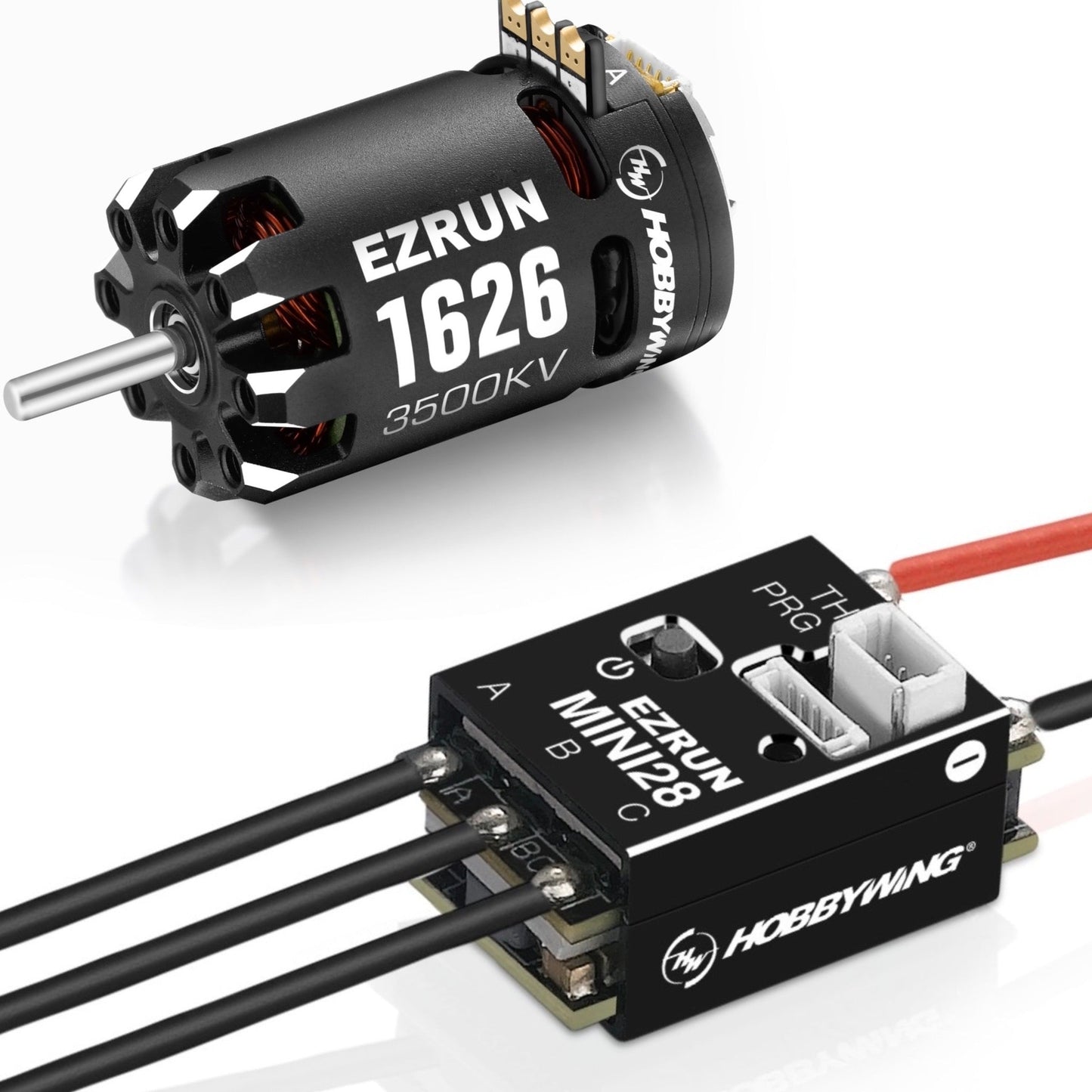

EZRUN Mini28 Combo (Mini28 ESC + 1626 SD Motor)
EZRUN Mini28 Combo (Mini28 ESC + 1626 SD Motor)
Regular price
$129.99
Regular price
$129.99
Sale price
$129.99
Unit price
per
Couldn't load pickup availability
MAP $129.99
Designed for high-power 1/28th scale builders
What's in the box?
- (1) EZRUN Mini28 ESC
- (1) EZRUN 1626 Sensored Motor
- (1) Supportive accessories (double side tape, etc)
Features
- Improved top speed / Precision response / High efficiency with the cool operation
- When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
- Zero cogging, consistent torque and excellent low-speed response give an amazing feel and driveability
- Modular detachable structure, convenient for daily cleaning and maintenance.
EZRUN 1626 Sensored Brushless Motor
| Model | Ezrun 1626-3500KV | Ezrun 1626-5000KV | Ezrun 1626-6500KV |
| PN | 30402653 | 30402654 | 30402655 |
| Pole | 2 | 2 | 2 |
| KV | 3500KV | 5000KV | 6500KV |
| No-load Current(A) |
0.4A | 0.5A | 0.6A |
| Input Voltage | 2S | 2S | 2S |
| Diameter/ Length(mm) | 16 | 16 | 16 |
| Shaft Diameter/ Length (mm) | 26 | 26 | 26 |
| Applications | 1/28th Mini | 1/28th Mini | 1/28th Mini |
| Weight | 18g | 18g | 18g |
Manual download
EZRUN Mini28 ESC
EZRUN 1626 Sensored Motor
